Quick-change attachment armour for wheel loaders
This armour is specially designed for small and medium-sized wheel loaders.
The special feature of this protective conversion is the patent-pending possibility of mounting and dismounting in a very short time by means of a quick-change system.
This is particularly advantageous for rental, as well as for temporary use of the armour.

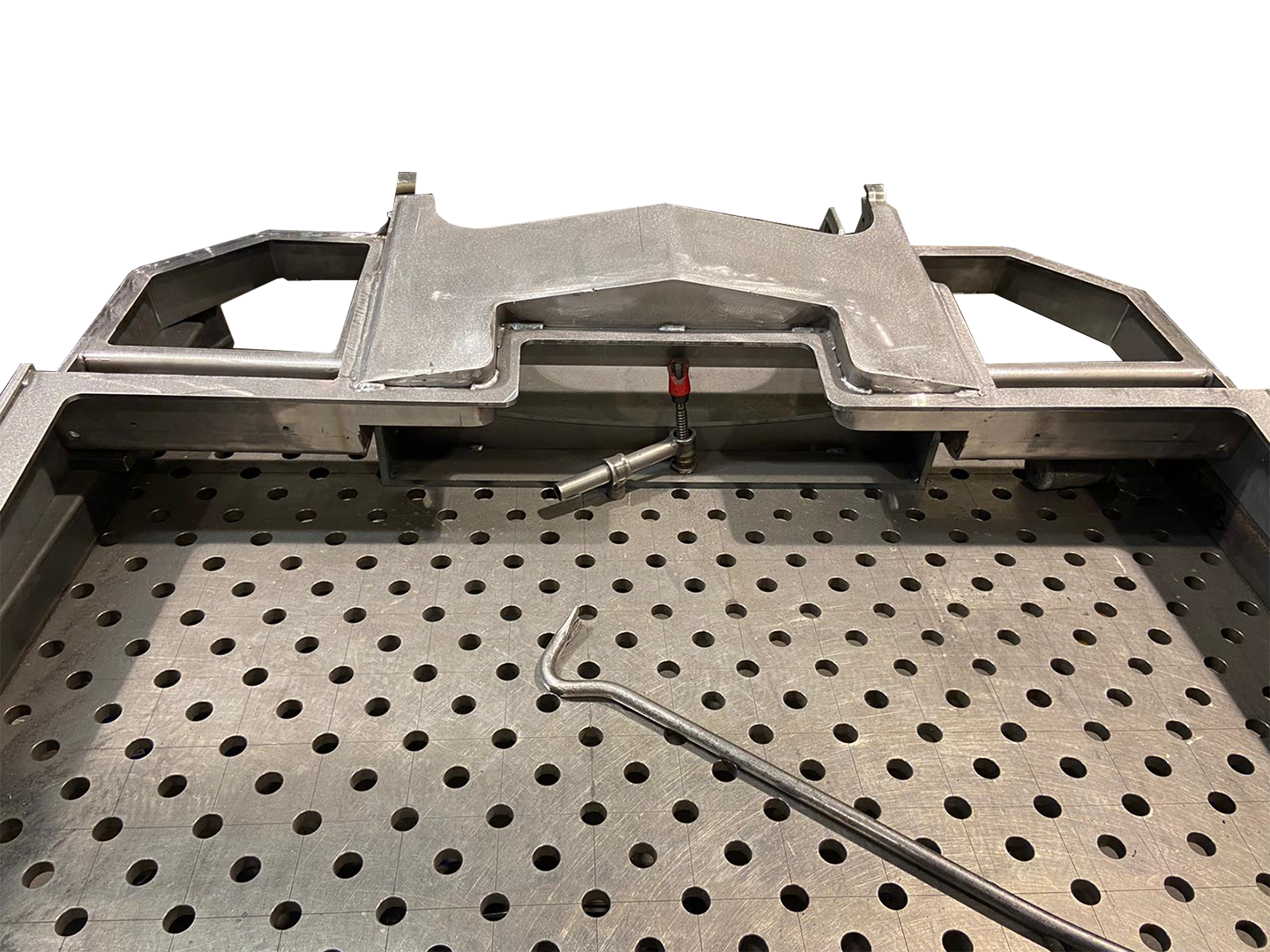

The armouring is put on extended bolts of the lifting frame or lifting cylinder and then braced and secured.
The large-area design in conjunction with the lower windows and the upper deflector plate ensures maximum safety for the driver, even when the wheel loader is broken.
The armouring is weight-optimised for small wheel loaders so that the permissible total weight of the machine is not exceeded.
Due to the open construction, this type of armour has only a low protective effect against blast pressure.
The armour has bullet class BR 6 NS and explosion class ER 0

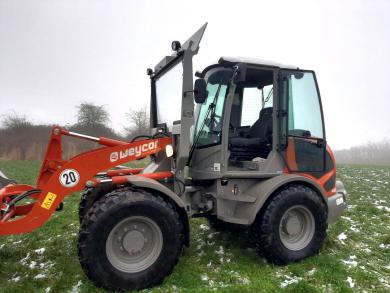

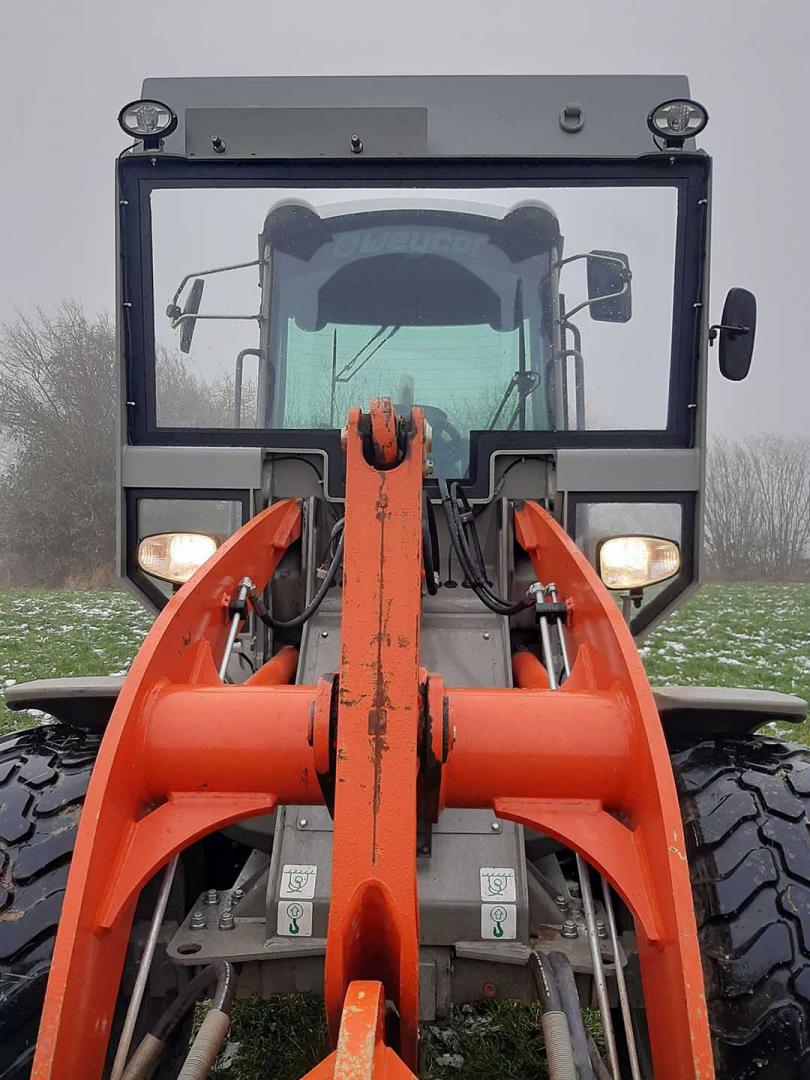

The large-area cover of the cabin is clearly visible. The original headlights are reattached to the armour in the same place. On this wheel loader, the steering angle must be reduced by 6 degrees to prevent a collision with the cabin when the wheel loader is folded. (This is not usually necessary on wheel loaders with a rear swing axle).
Assembly

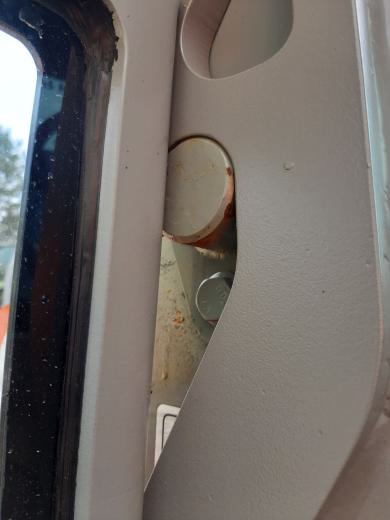

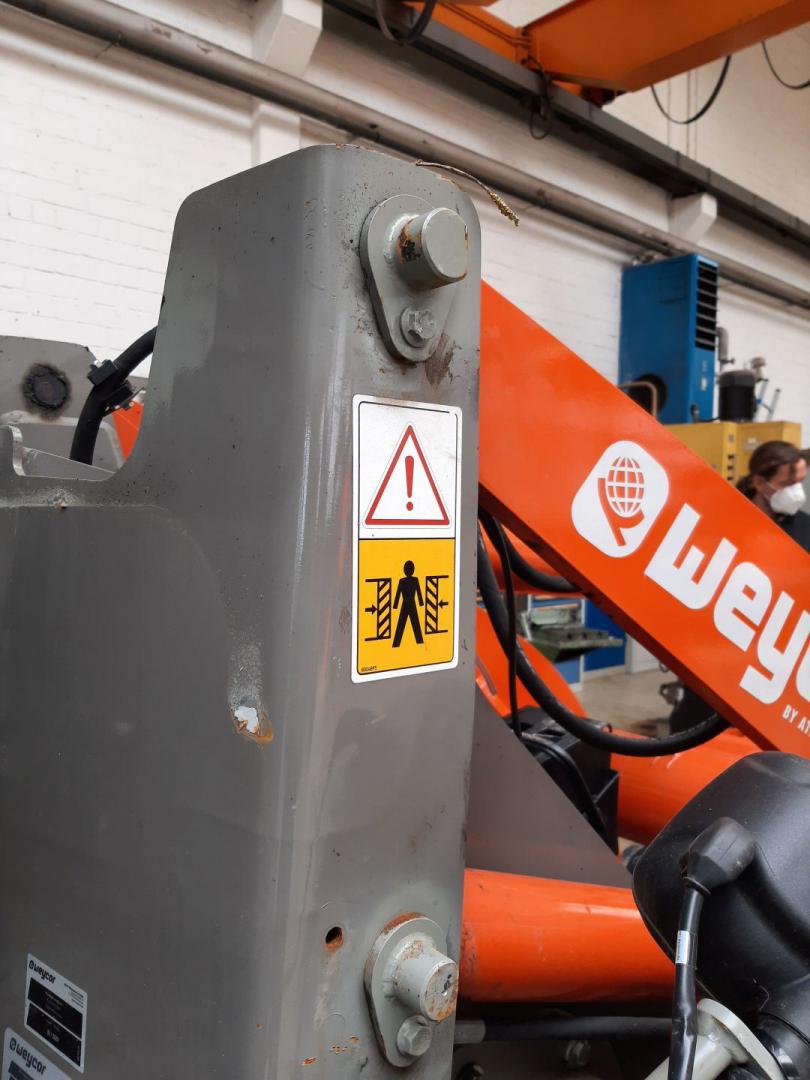

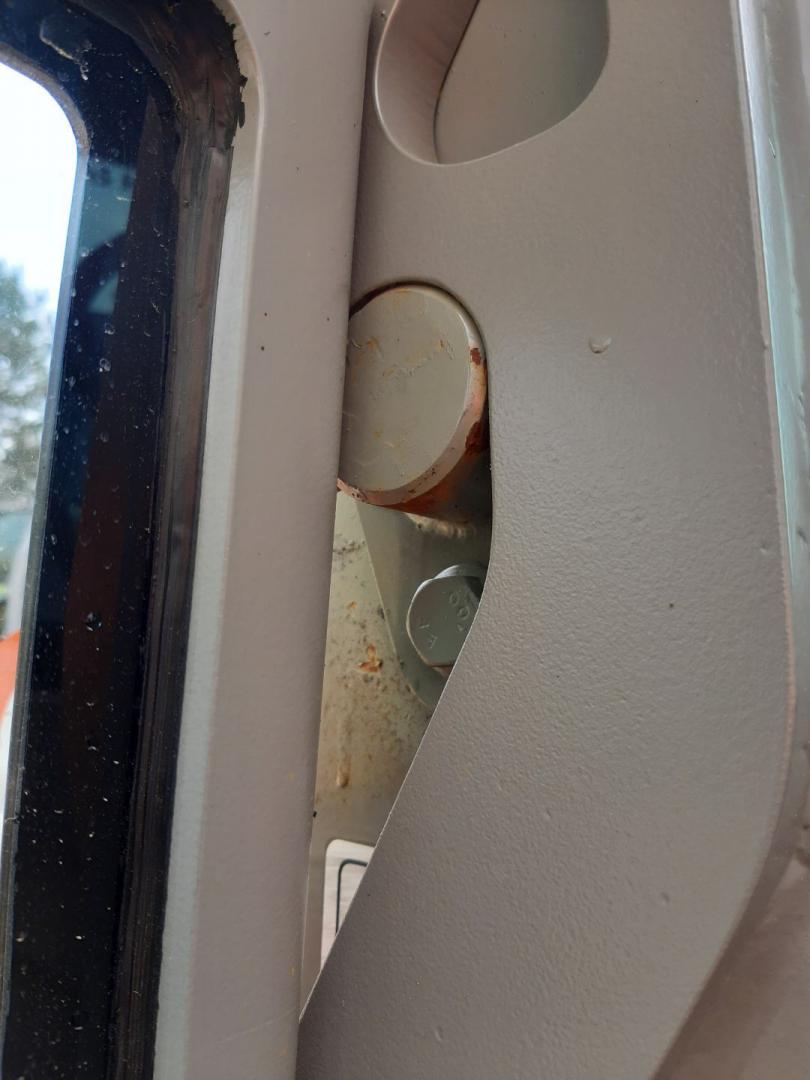

To be able to mount the armouring, only the original bolts are exchanged for special bolts that are extended outwards. No further modifications to the front end are necessary, so that the wheel loader can be returned to its original condition at any time without great effort.

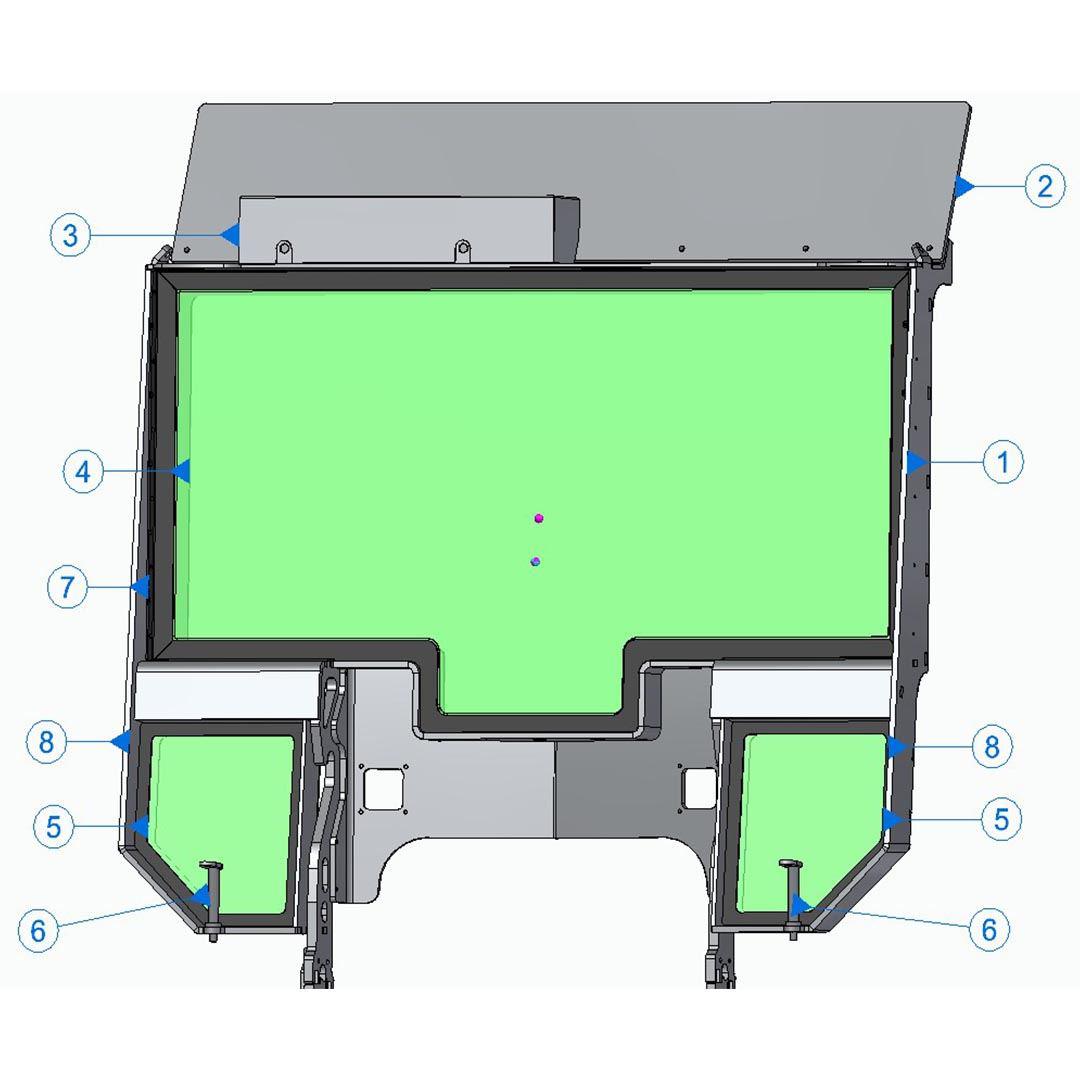

Options in detail
1. quick-change attachment armour for small and medium-sized wheel loaders. Suitable for wheel loaders where it is possible to extend the pins of the lifting mast and the lifting cylinder outwards by approx. 30 mm and thus attach them to the wheel loader using the patent-pending quick-assembly device. The large-area cover of the front armour provides good protection against splinters, for example when working with the screening unit. The protection is still effective when the loader is retracted because it rides on the mast. The protection class corresponds to ER 6 S/NS. However, due to the open design, the protection against explosion pressure is only low and is therefore classified as ER 0. With some wheel loaders it is necessary to limit the steering angle.
2. detachable additional upper 12mm mudguard
3.double shaft wiper module 12/24V with sheet metal cladding
Surcharge for armoured glass on top with polycarbonate of bullet class BR 6NS. For small wheel loaders with low payloads (less than 360 kg), this option must be ordered for weight reasons.
5.surcharge for armoured glass panes at the bottom, with polycabonate of bullet class BR 6NS.
6. holder for headlamp
7. all-round window frame 4mm sheet metal on top
8. 4mm all-round window frame at bottom right and left.
This armour has been specially developed for small and medium-sized wheel loaders. The special feature of this protective conversion is the patent-pending possibility of mounting and dismounting in a very short time by means of a quick-change system. This is a great advantage for rental companies as well as for users who only use the armour temporarily. The armouring is mounted on extended bolts of the lifting mast / lifting cylinder and then braced and secured. The large-surface design in combination with the lower discs and the upper deflector plate ensures maximum safety for the driver, even when the wheel loader is broken. The armouring is weight-optimised for small wheel loaders so that the permissible total weight of the machine is not exceeded. Due to the open design, this type of armouring has only a low protective effect against explosion pressure.
The armour has bullet class BR 6 NS and explosion class ER 0

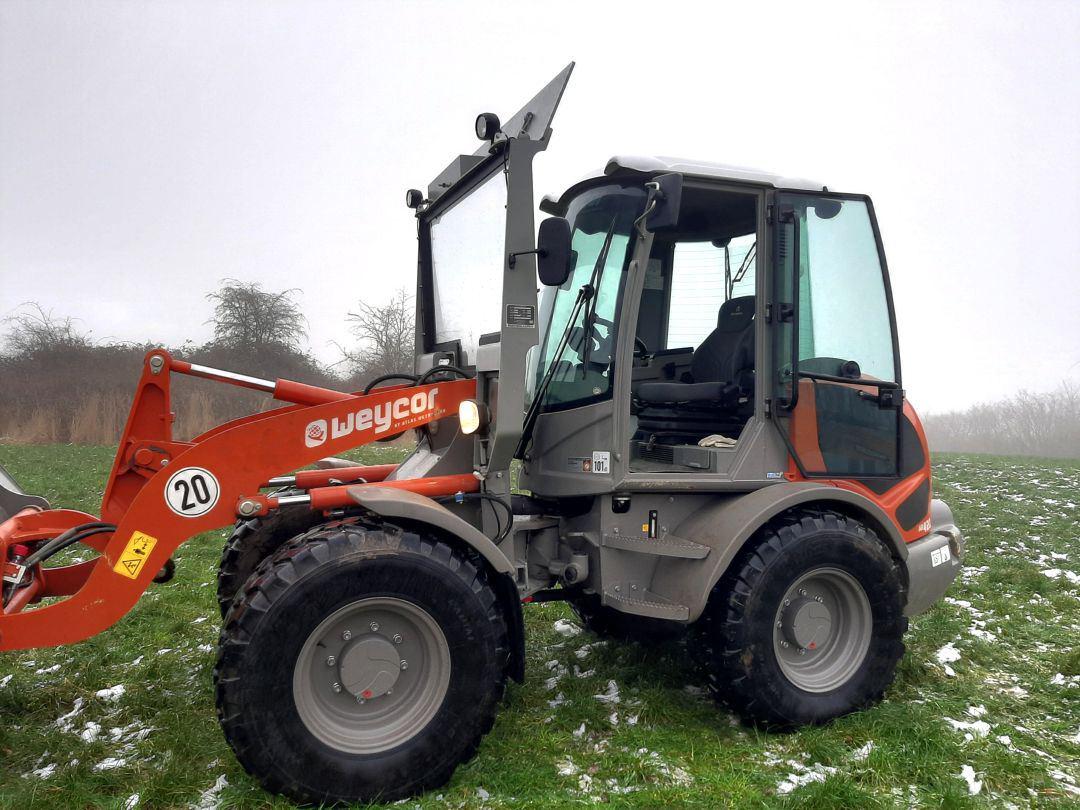

Large-area cover of the cabin
The large-area cover of the cabin is clearly visible. The original headlights are reattached to the armour in the same place. On this wheel loader, the steering angle must be reduced by 6 degrees to prevent a collision with the cabin when the wheel loader is folded. (This is not usually necessary on wheel loaders with a rear swing axle).
Options in detail
1. quick-change attachment armour for small and medium-sized wheel loaders. Suitable for wheel loaders where it is possible to extend the pins of the lifting mast and the lifting cylinder outwards by approx. 30 mm and thus attach them to the wheel loader using the patent-pending quick-assembly device. The large-area cover of the front armour provides good protection against splinters, for example when working with the screening unit. The protection is still effective when the loader is retracted because it rides on the mast. The protection class corresponds to ER 6 S/NS. However, due to the open design, the protection against explosion pressure is only low and is therefore classified as ER 0. With some wheel loaders it is necessary to limit the steering angle.
2. detachable additional upper 12mm mudguard
3.double shaft wiper module 12/24V with sheet metal cladding
Surcharge for armoured glass on top with polycarbonate of bullet class BR 6NS. For small wheel loaders with low payloads (less than 360 kg), this option must be ordered for weight reasons.
5.surcharge for armoured glass panes at the bottom, with polycabonate of bullet class BR 6NS.
6. holder for headlamp
7. all-round window frame 4mm sheet metal on top
8. 4mm all-round window frame at bottom right and left.
