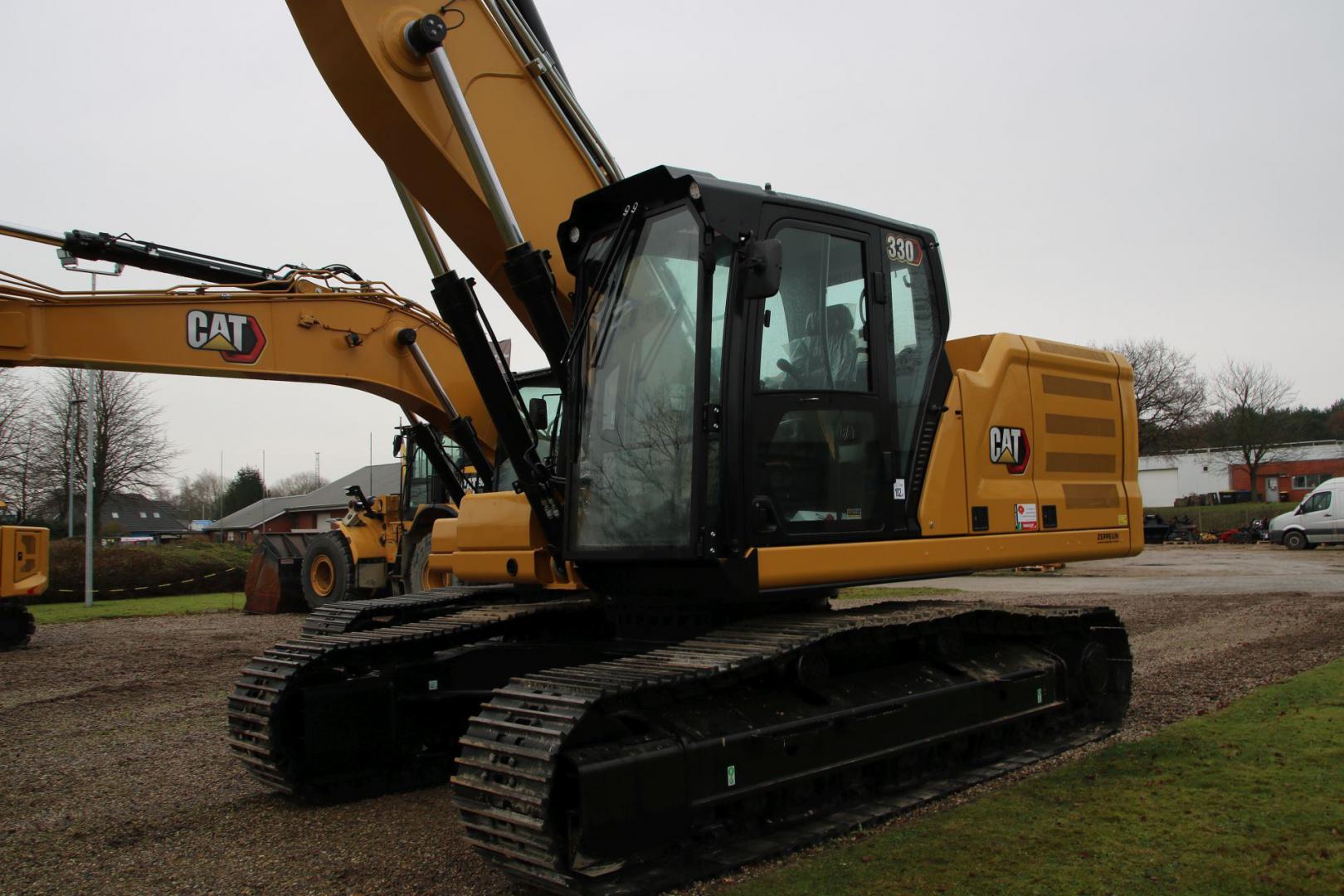

This armour can be combined with various extras and is suitable for excavators from approx. 16 t. Due to the design as attachment armour, it can be easily dismantled at any time. Therefore it is suitable for rental or temporary use. However, due to the light and open design, it has no resistance against explosion. Therefore, this protective conversion is only recommended for the search for explosive ordnance with a very low explosive effect. The shatter protection corresponds to BR 6 shatter or non-splinter, depending on the armoured glass ordered.

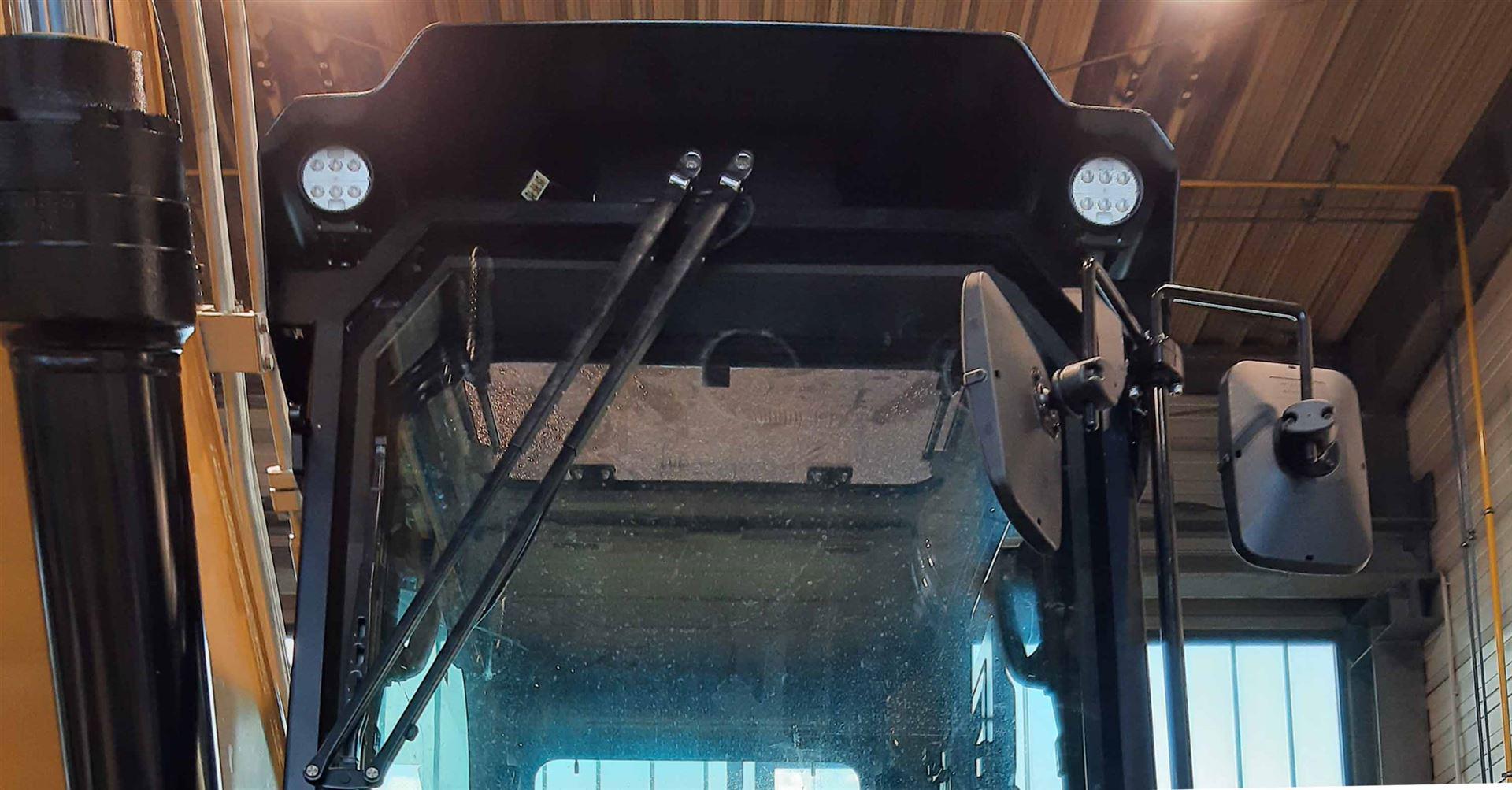

Weather protection roof with integrated wiper module and the possibility of mounting up to 6 headlights. Optionally with built-in LED light bar in the middle

Reinforced floor assembly with demountable inspection openings

The assembly is carried out at the original fixing points of the cabin and thus ensures short assembly and disassembly times.

All components can be retrofitted and can also be replaced individually if damaged.

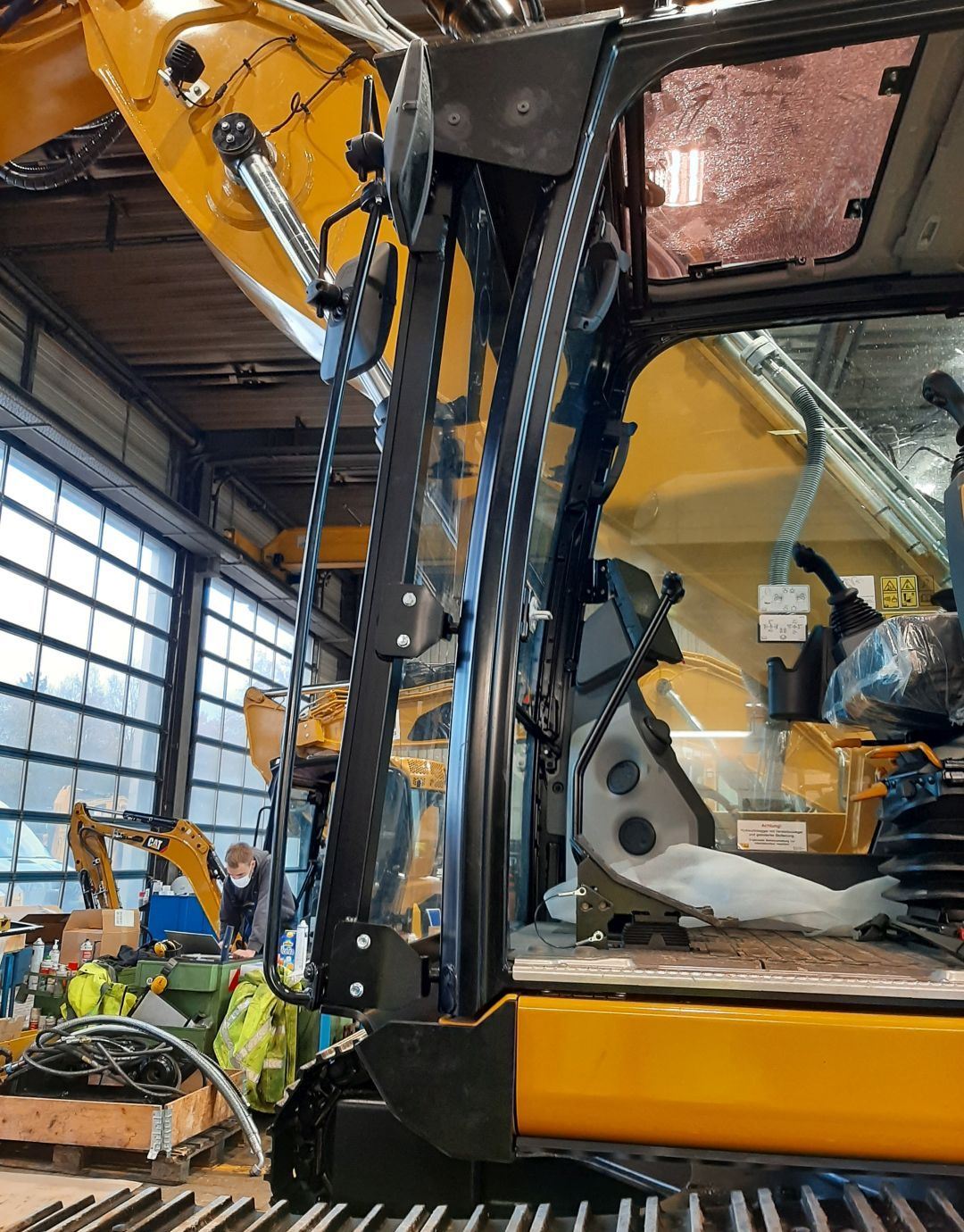

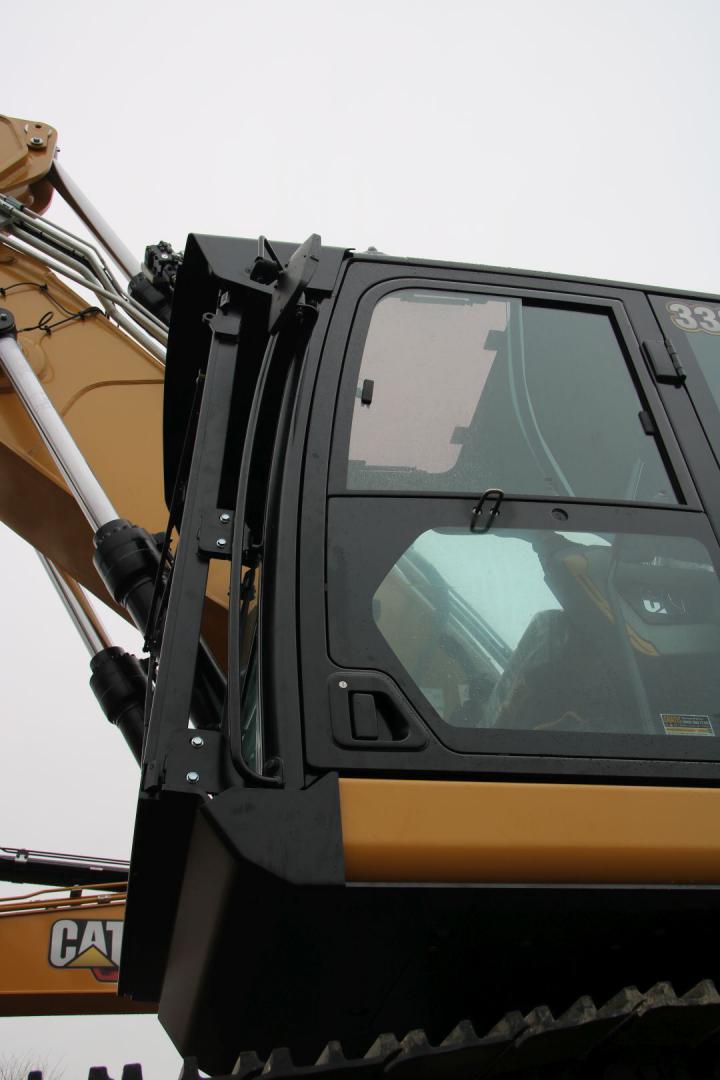

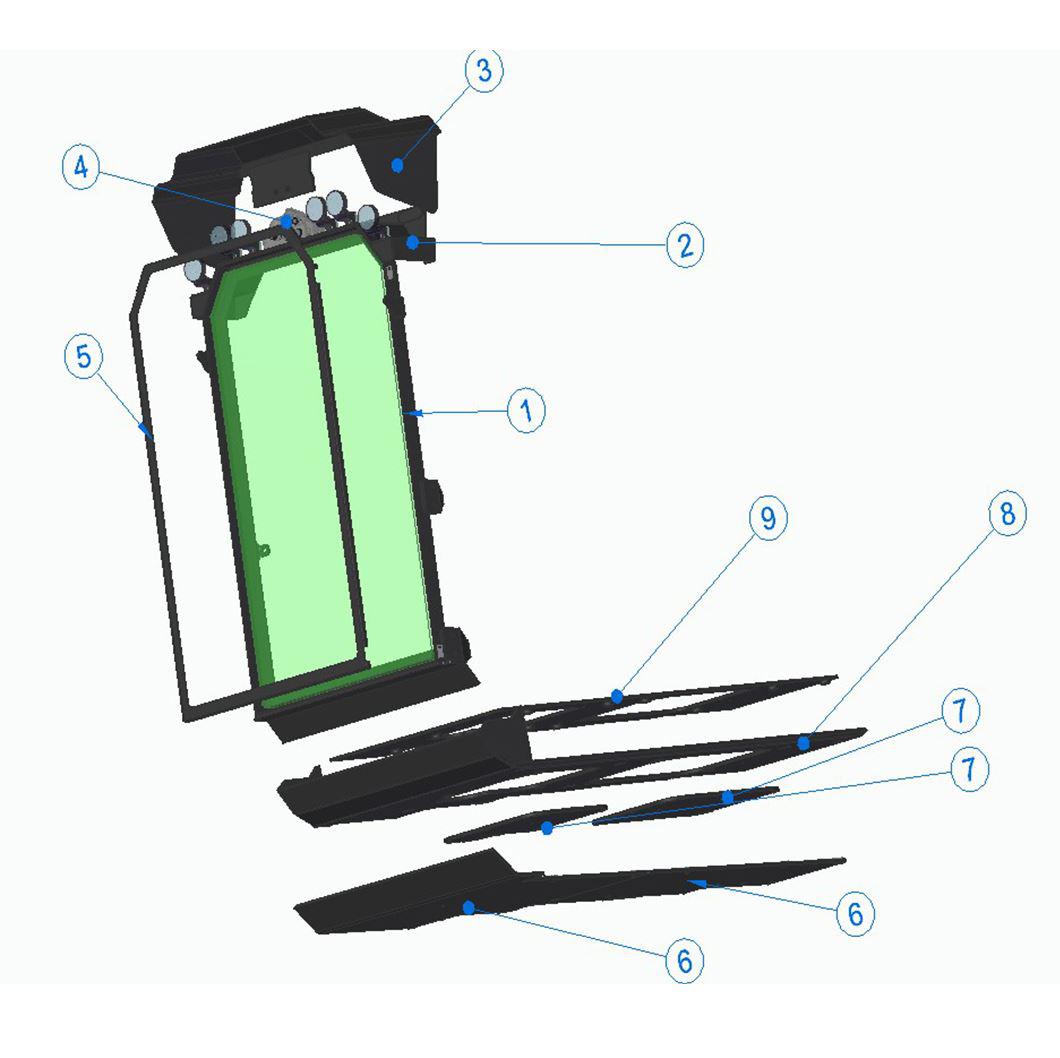

1. Reinforced front frame, base frame made of 8 mm folded sheet steel. Holder made of 10 mm folded sheet steel. With bullet-proof glass pane of bullet-proof class BR 6S explosion class ER 0.

2. Closed upper holder with receptacle for the wiper module

3. Weather protection roof only in connection with Pos.2.

4. Wiper module 12/ 24V top

5. All-round bonded windscreen cover made of 4mm folded sheet metal

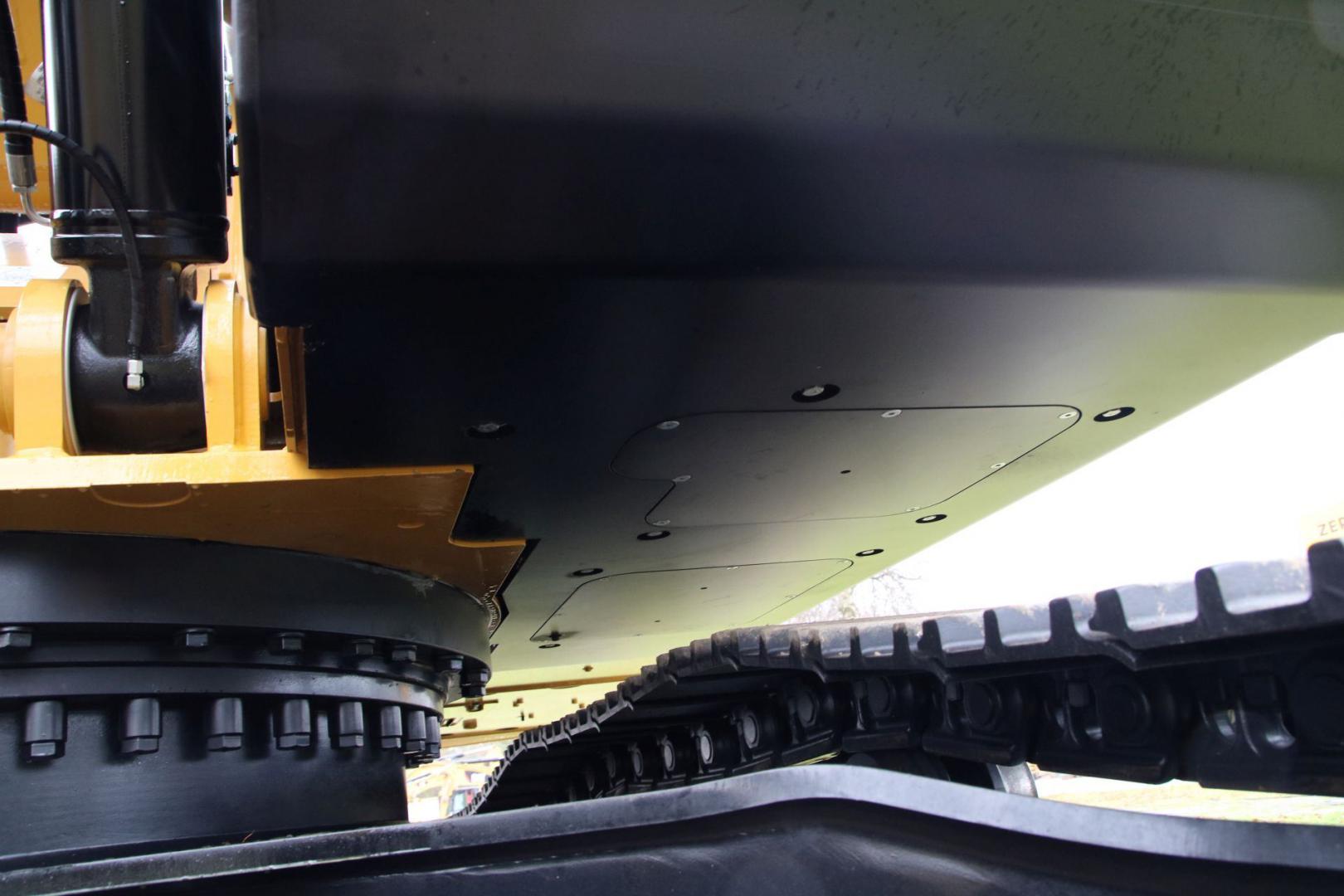

6. Two-piece floor armour made of 12mm steel plate, overlapping folded at the front.

7. Multi-part floor armour with screwed-in inspection hatches
